Printing system or printer – KS3

Product description

The KS3 printing station provides a standalone desktop TIJ solution, enabling convenient marking of very small products that are otherwise difficult or cumbersome to label using conventional methods.

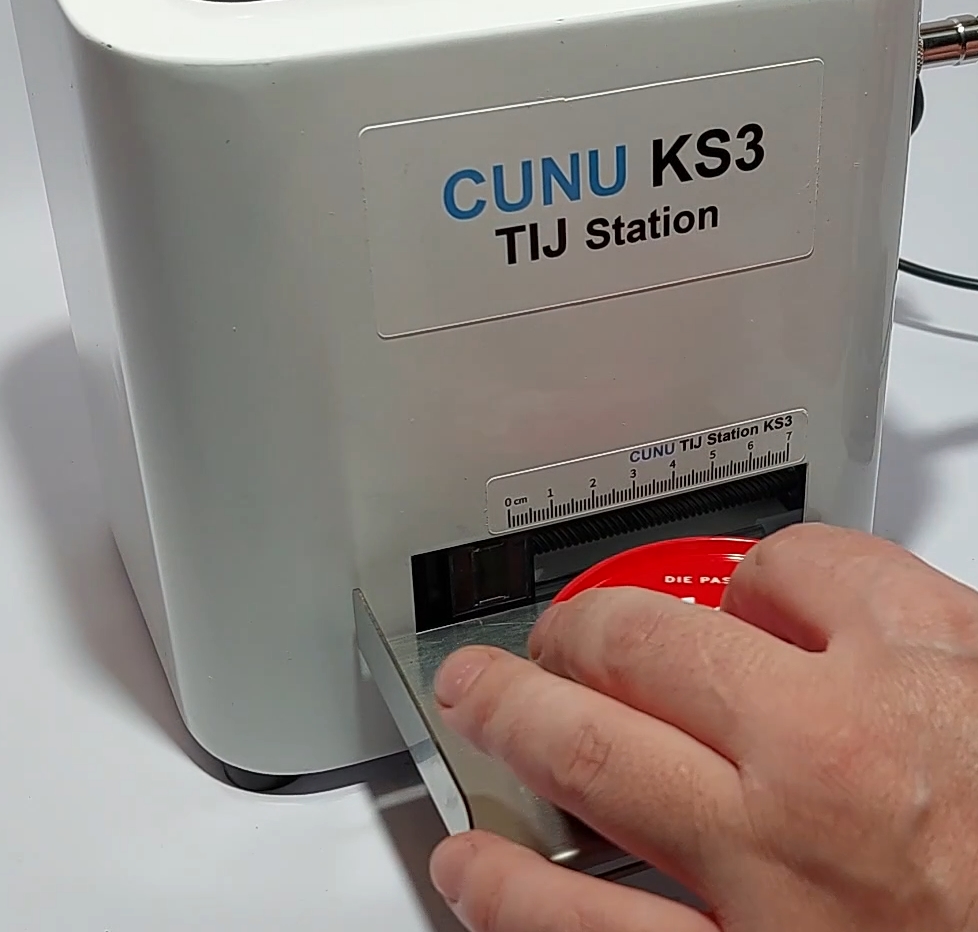

The item to be printed is placed on the precision-adjustable platform (equipped with a stop), and printing is triggered either via the button on top of the unit or the included foot switch.

• Single-color printing on glass, paper, cardboard, ceramics, metals (such as aluminum, cast iron, copper, steel, titanium, etc.), and plastics/polymers (PET, PVC, PE, HDPE, LDPE, PPR)
• 600 DPI print resolution (depends on the cartridge; the printhead is integrated into it)
• Store up to 250 templates in internal memory
• Interfaces: USB (for data transfer via flash drive), RS232, footswitch
• Compact dimensions: 17 cm x 15 cm x 17 cm
• Includes footswitch, power adapter, and positioning platform
• Includes 1 solvent ink cartridge – ink dries in seconds and is smudge-proof
• Additional inks available (e.g., white or food-grade – linked below)
• Print dimensions up to 60 mm long and 12.7 mm high

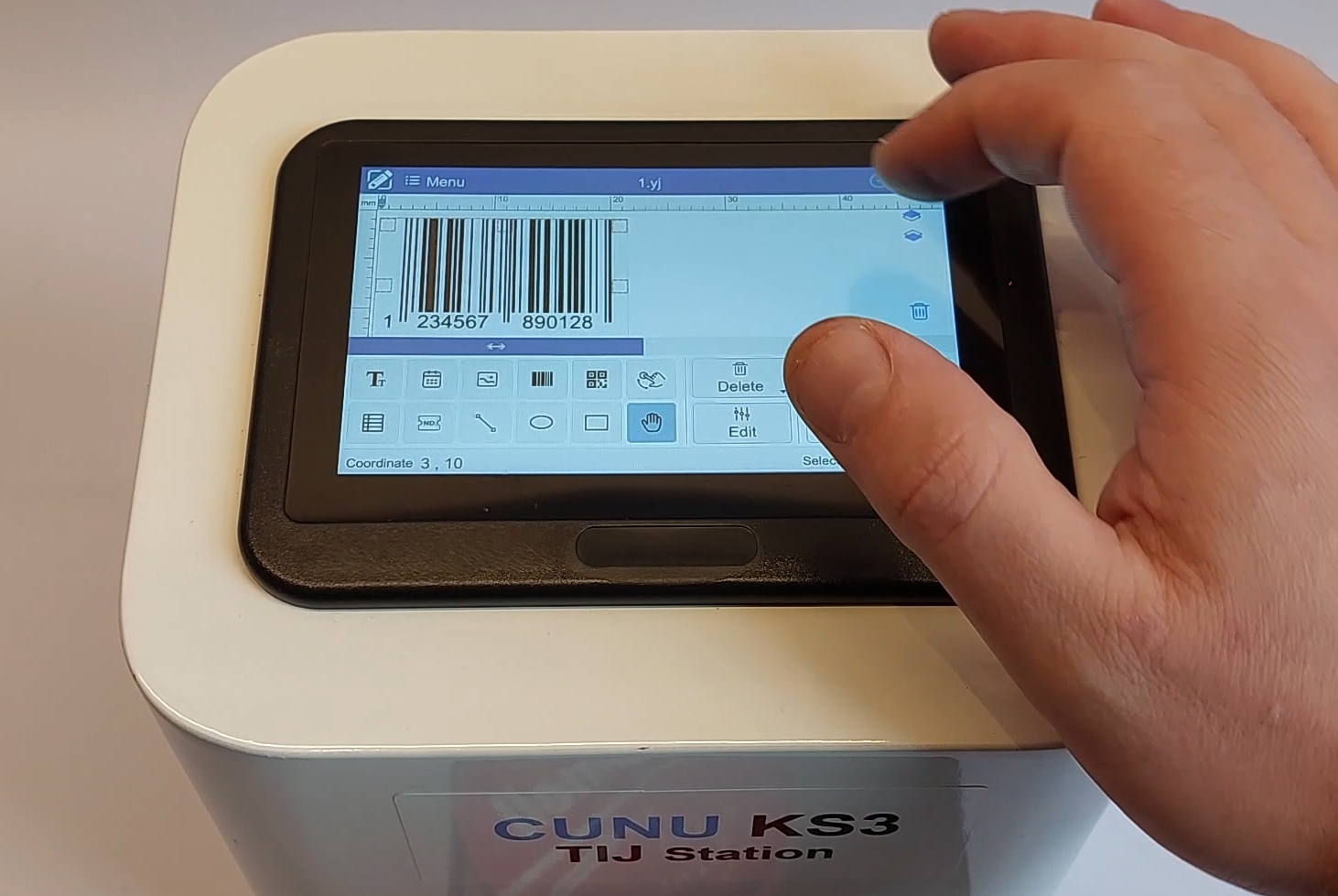

• High-resolution 5-inch capacitive touchscreen – easily create your designs directly on the device (no PC or smartphone required)
• Multilingual, intuitive software

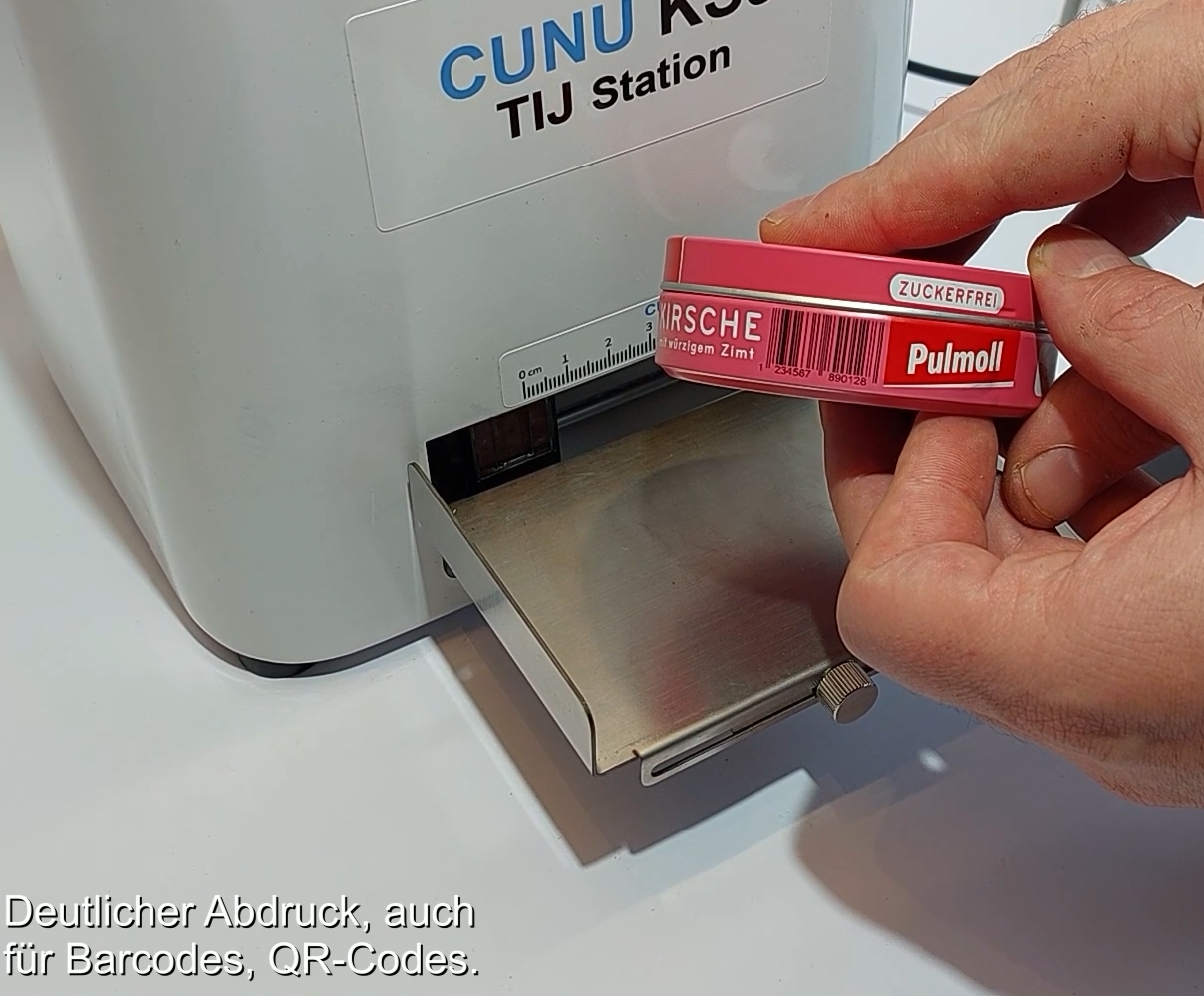

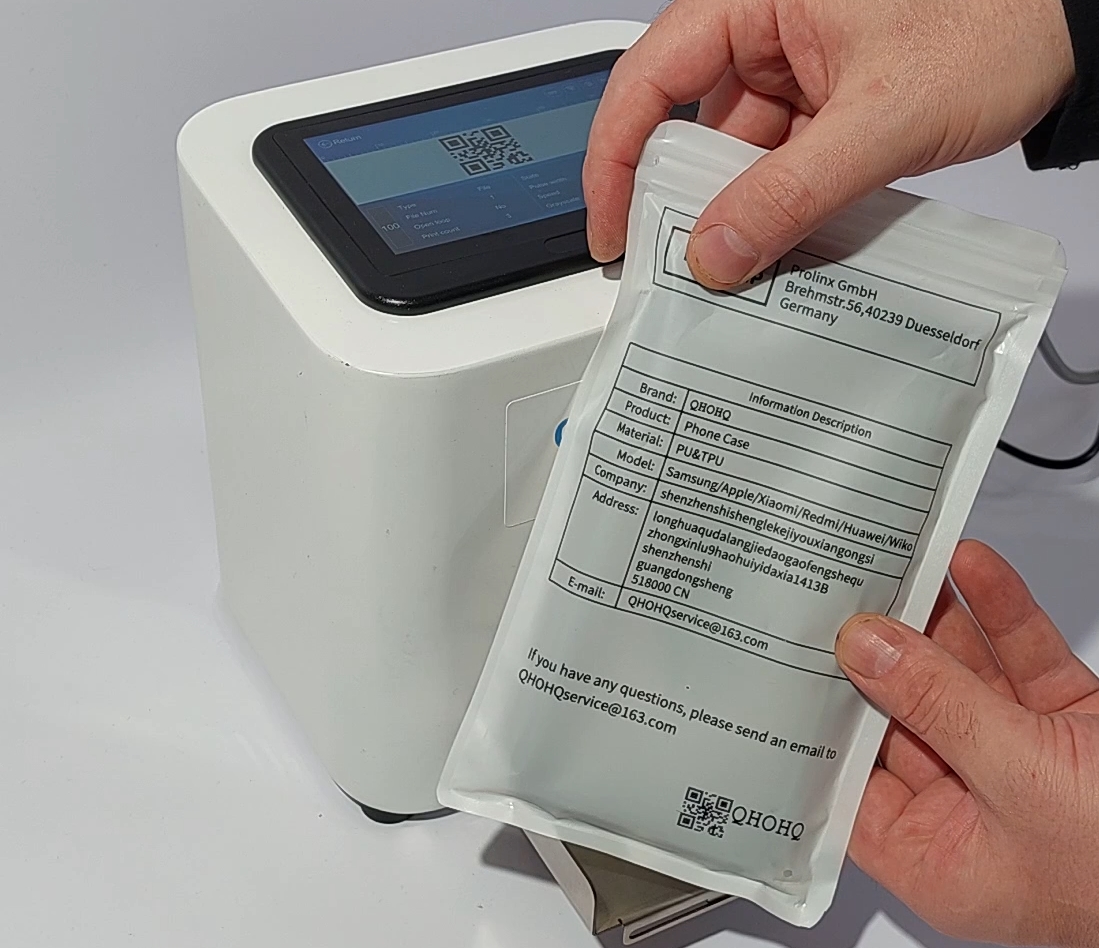

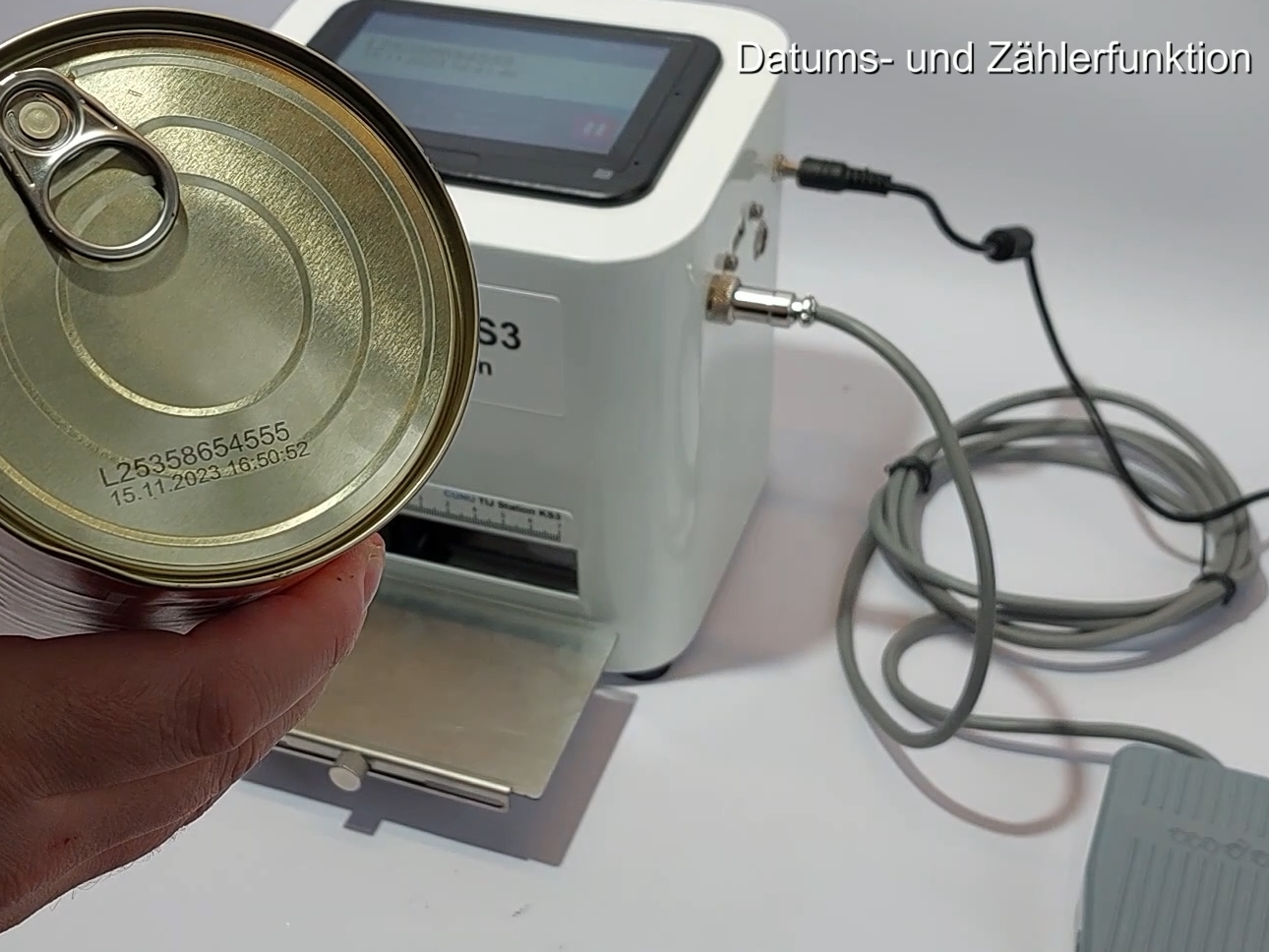

• For printing items such as batches, lot numbers, best-before dates, barcodes, QR codes, monochrome logos, and informational text—a wide range of counter and date functions is available (see also example videos).

If you are unsure whether the device is suitable for your specific application, you are welcome to send us a sample product to print on. You are also welcome to test the printer in our workshop by appointment.

• Due to our WEEE registration being valid exclusively in Germany, as well as our compliance with national regulations under the Battery Act (BattG) and the Electrical and Electronic Equipment Act (ElektroG), the sale of this item is restricted to the German market.

Note: TIJ printing technology offers many advantages; however, it is important to note that this printing method requires periodic cleaning of the cartridge printhead (video example here). Conversely, the very fast-drying ink means the printhead is more prone to clogging than in conventional inkjet printers. Therefore, if the device has sat idle for an extended period without the cartridge being removed and resealed after use, a few test prints must be made to fully clear the nozzles.

Precise, convenient, and versatile: The KS3 TIJ printer is the ultimate desktop unit for TIJ printing. The KS3 sets new standards with its ability to precisely position prints up to 6 cm long and 12.7 mm high. This system makes it possible, for the first time, to print on small objects conveniently.

How the TIJ desktop printing station works

Key facts about applications for the KS3 printing station

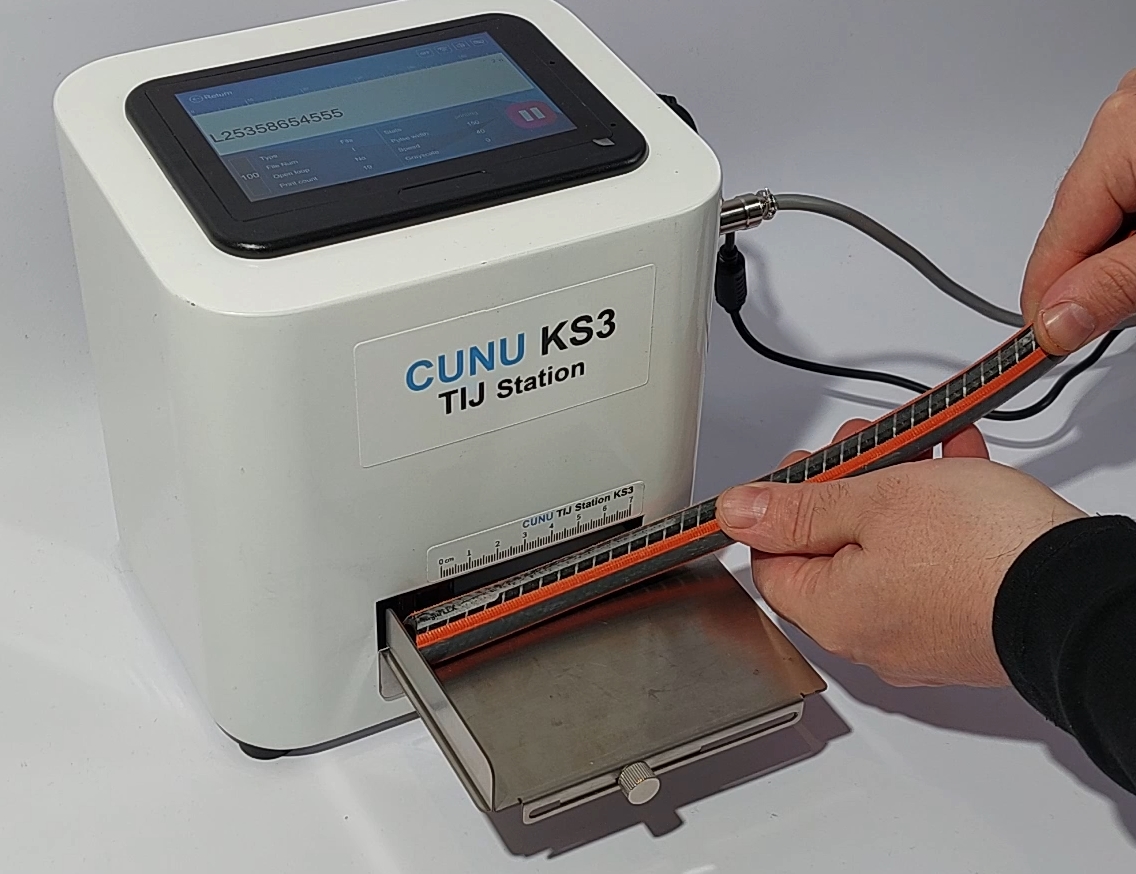

TIJ technology enables the printing of a wide range of items, from pipes and bottles to packaging and more. This versatile device is the ideal solution for companies requiring a flexible printing system for custom product marking. Ease of use is a top priority for the KS3. The unit features a switch that triggers the printing process once the product has been placed on the tray against the stop. Alternatively, a foot switch can be used to keep hands free and make the printing process even more convenient.

The KS3 TIJ printer allows you to mark and personalize your products professionally. The printing station is primarily used for marking batch numbers, lot numbers, best-before dates, or values ​​that automatically increment or decrement. Monochrome graphics (e.g., logos) can also be printed (USB port for flash drives included).

Precise positioning and high print quality ensure your markings always look perfect. Rely on the precision and versatility of the KS3 TIJ printing station to meet your marking requirements.

Included components & setup – instructional video

PDF – Operating instructions (German) for KS3 thermal inkjet printing station

• Download – Operating instructions (German) for KS3 thermal inkjet printer

§ Legal notice: All manufacturer and brand names mentioned serve solely to identify compatibility and are the property of their respective rights holders.

In accordance with the German Electrical and Electronic Equipment Act (ElektroG), used electrical appliances purchased from us can be returned to the address listed in the legal notice.

Documents and additional information

• German instructions for the KS3 thermal inkjet printer
