Printing system or printer – KS2

Product description

The CUNU KS2 is our best complete thermal inkjet system. The KS2 offers the same range of functions as the KS1 but also features a 7" capacitive touchscreen that would be the envy of modern smartphones. The KS2 is also available with a large printhead capable of printing heights up to 25.4 mm. The TIJ process works by heating and ejecting tiny ink droplets from the printhead—a precise, non-contact method that dries in seconds. TIJ is a very fast, single-color printing process.

• CUNU KS2 aluminum printhead holder
• High-resolution, generously sized 7-inch (17.78 cm) capacitive touchscreen in an aluminum housing
• Chip-free cartridge system: with our KS2, you are not tied to expensive OEM ink cartridges; the system accepts ink cartridges both with and without chips

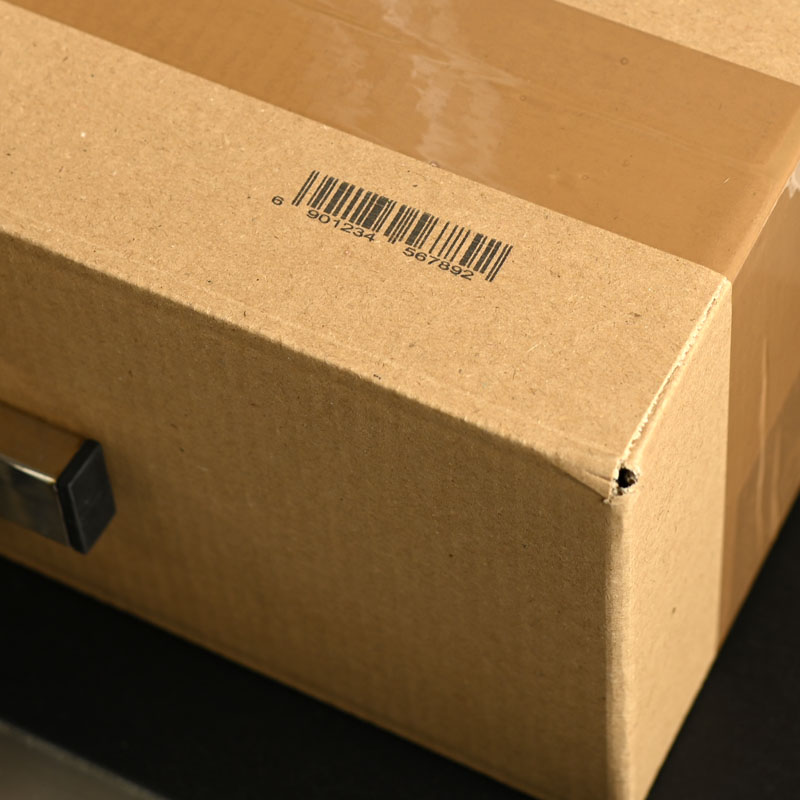

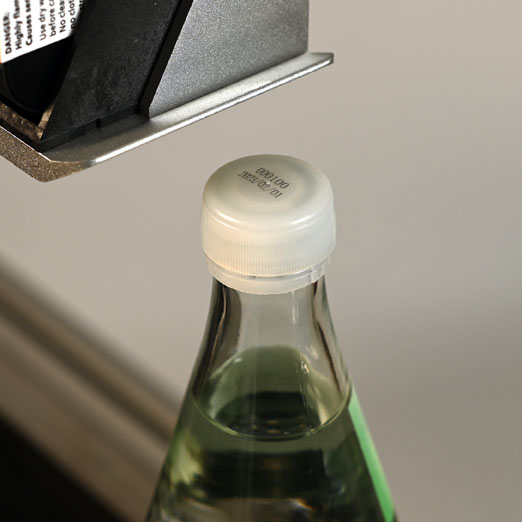

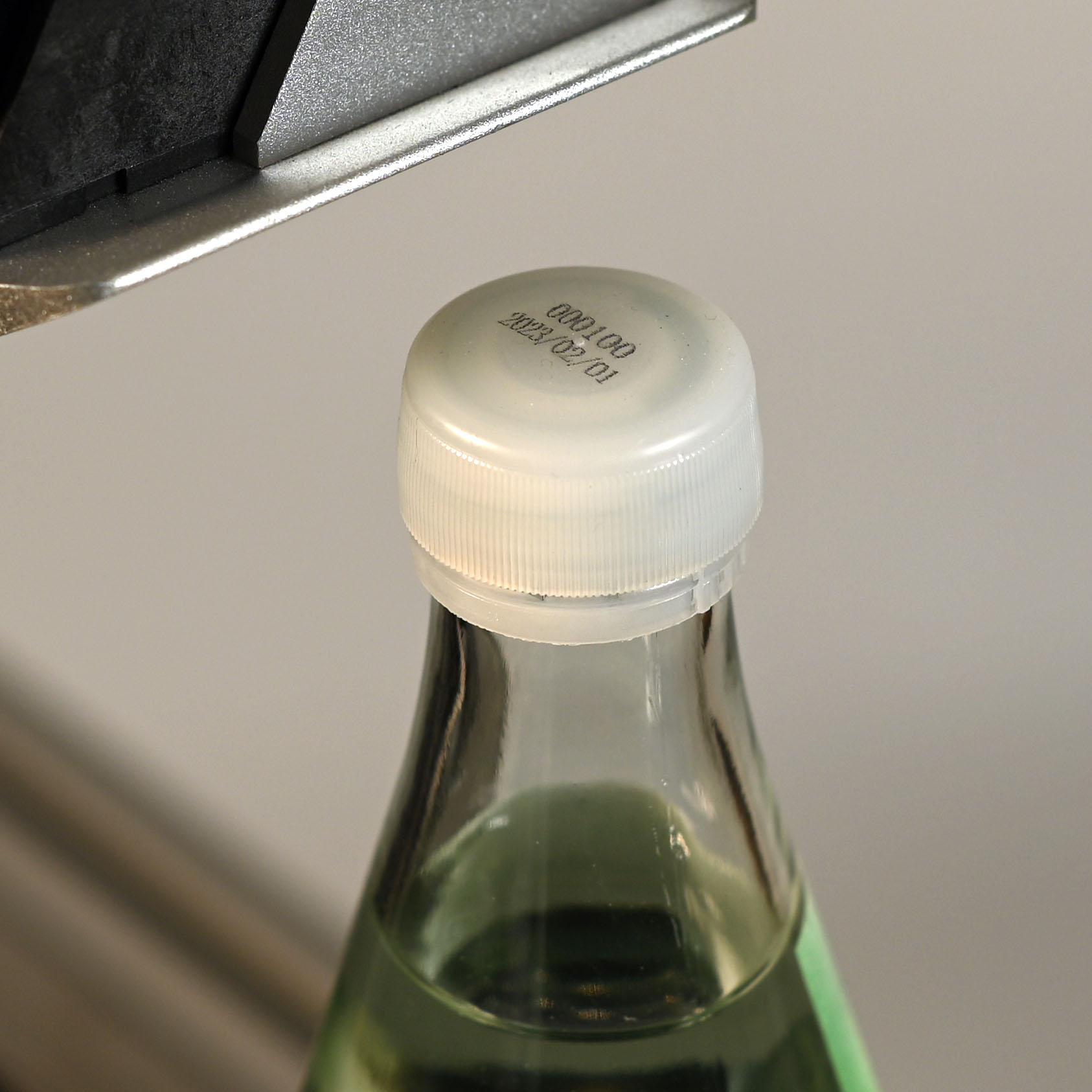

• For printing items such as dates, best-before dates, text, automated/customizable counters, batch numbers, barcodes, EAN codes, and simple logos
• 600 dpi printhead with a max. print height of 12.7 mm or 25.4 mm (please select)
• TIJ cartridge with black solvent ink included (42 ml capacity; sufficient for approx. 1,000 A4 pages of text)
• Multilingual software (German, English, Spanish, Italian, Portuguese, Polish, Turkish)
• USB port for importing images, Excel files, and TXT files via USB drive
• Speed ​​up to 50 m/min min
• For cardboard, plastic, stone, metal, wood, glass (also suitable for food products with appropriate ink)
• USB drive with operating instructions and video tutorials – We won’t leave you high and dry after your purchase. If you have trouble with the provided instructions or video tutorials (see below), we are happy to assist you via WhatsApp video call to go through and configure the system's basic settings with you step-by-step.

Optional accessories (select as needed)

• VEVOR conveyor belt, black PVC belt, 150 x 19.5 x 75 cm (wider conveyor belts & custom designs available upon request)
• Aluminum profile system for flexible positioning of the printhead mount and display
• Recommended add-on: P2000 encoder for automatic adjustment to variable conveyor speeds

You are welcome to test the printing system at our workshop by appointment. We look forward to your visit!

• Due to our WEEE registration being limited to Germany and our compliance with national regulations under the Battery Act (BattG) and the Electrical and Electronic Equipment Act (ElektroG), the sale of this item is restricted to the German market.

Note: TIJ printing technology offers many advantages. However, please note that this printing method requires periodic cleaning of the cartridge printhead (video example here). Conversely, the very fast-drying ink means the printhead is more prone to clogging than in conventional inkjet printers. If the device has been idle for an extended period without the cartridge being removed and resealed after use, a few test prints must be made first to ensure the nozzles are fully flushed out.

The CUNU KS2 is a standalone TIJ marking system. It utilizes the widely used and field-proven HP (Hewlett-Packard) compatible 45si standard with a 1/2-inch cartridge for marking a wide variety of products; food-grade inks are also available if required.

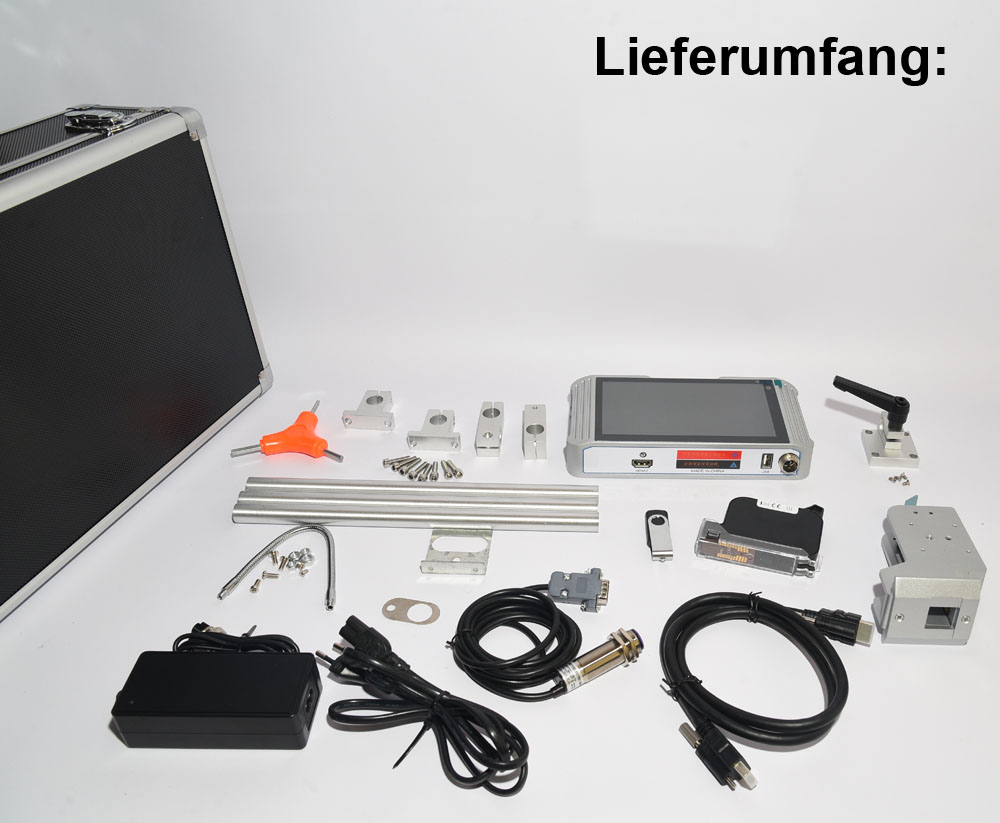

The printhead can be precisely adjusted and secured using the included stainless steel tubes and mounts. Standard hex keys and a screwdriver (included in the scope of delivery) are used for setup. All necessary mounting hardware is supplied, enabling self-installation or integration into existing packaging or production lines. The TIJ printing system can be easily integrated into most packaging lines.

The thermal inkjet printhead supports print heights of 2–12.7 mm (or 25.4 mm) at print speeds of up to 50 m/min. It is ideally suited for marking products with manufacturing details and serial numbers; labeling parcels, shipping cartons, and delivery documents; marking components made of wood, plastic, concrete, or metal; and marking various products with text, auto-incrementing numbers, batch numbers, item numbers, barcodes, and QR codes.

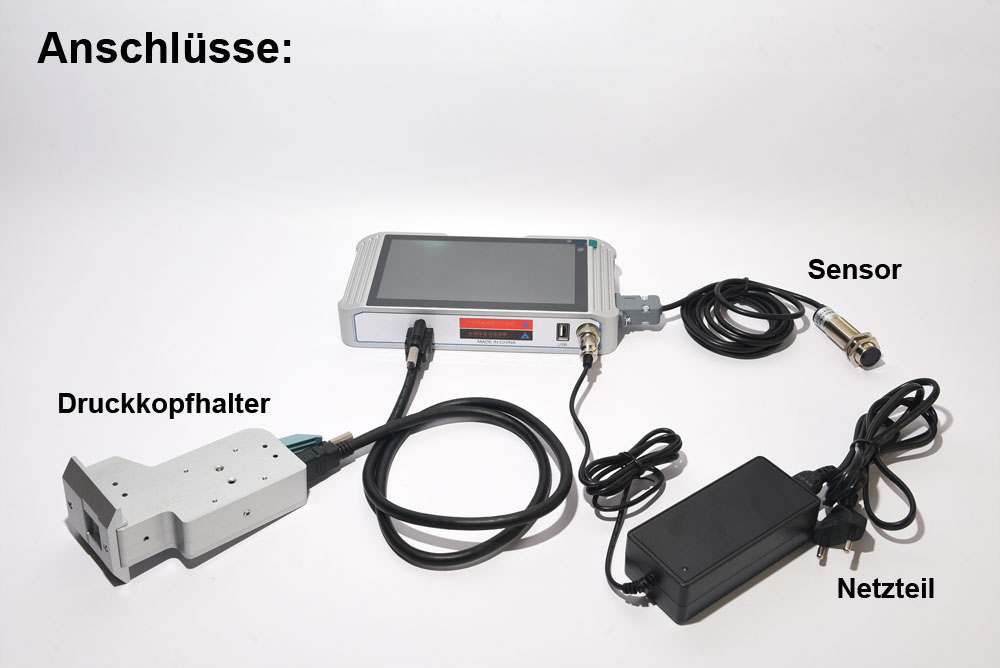

An adjustable sensor detects when a product approaches the printhead and sends a signal to initiate printing. The software offers various settings to synchronize the timing of the printing process with the speed of the conveyor belt (see our instructional videos below for more details). A selection of fonts is available. Text, data, and graphics can also be transferred to the standalone TIJ printer via a USB flash drive.

The system is easy to operate and can be adapted to a wide range of specific requirements. Its robust design makes it maintenance-free. The printhead is integrated into the ink cartridge and is considered a consumable item, which you can reorder from us at a low cost.

We won't leave you high and dry after your purchase. If you have trouble with the provided operating instructions or video tutorials, we are happy to assist you via WhatsApp video call to go over and configure the system's basic settings with you.

Useful information on software & touch controls

Crash course on design creation – key functions and adjusting print speed

Useful information on mounting the TIJ printer

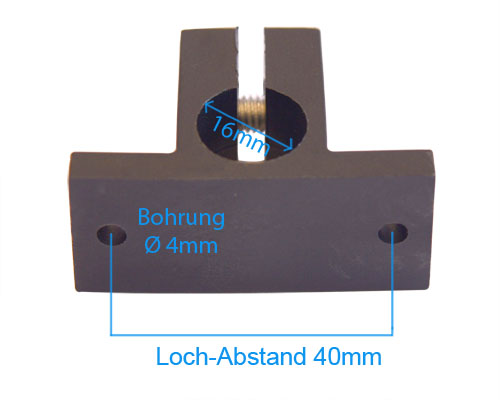

Here, we would like to provide a comprehensive overview of the mounting and operation of the KS2 Thermal Inkjet System. Please take the time to watch our video examples to ensure a smooth installation and avoid frustration during operation. Although the software is designed to be intuitive, it must be configured to match your specific conveyor belt speed and adapted to your products. Self-assembly is typically carried out using the included 16mm tubes, as well as aluminum stands and connectors.

Useful information: Example video of TIJ self-assembly on a standard conveyor belt

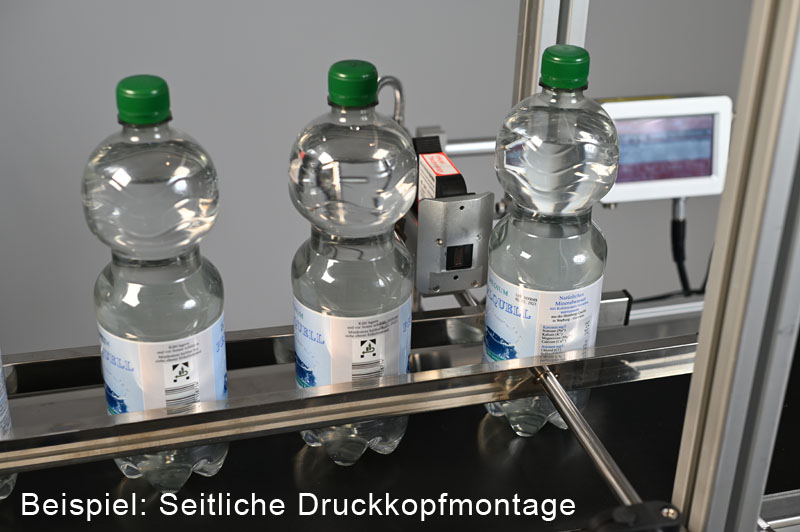

There are countless ways to integrate the printing system into your packaging or production line; the video example here shows a common, simple method. This demonstrates how the thermal inkjet system is mounted on a standard conveyor belt.

Legal notice: All manufacturer and brand names mentioned serve solely to identify compatibility and are the property of their respective rights holders.

In accordance with the German Electrical and Electronic Equipment Act (ElektroG), used electrical appliances purchased from us can be returned to the address listed in the legal notice.
