Product description

Label Dispenser CUNU 77 / 23-LD-316

• For table and wall mounting

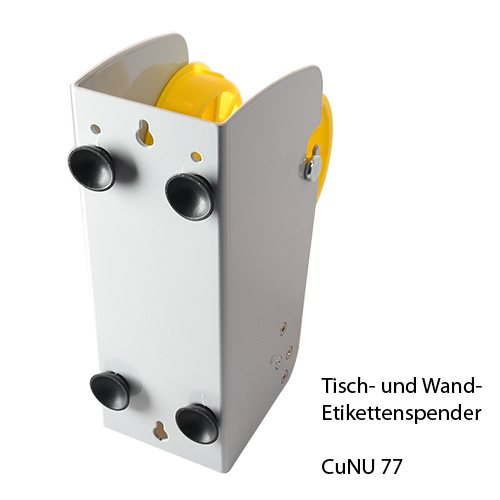

• Suction cups for optimal grip on smooth surfaces

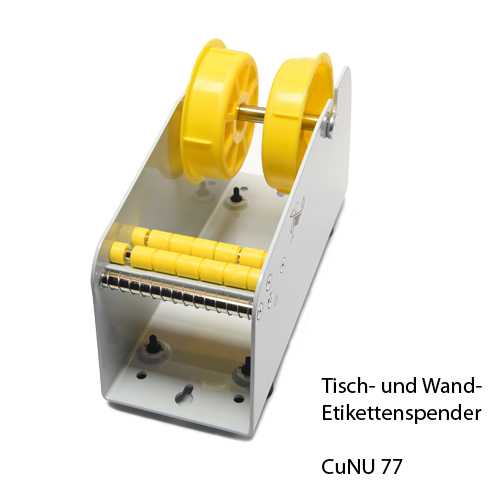

• Includes roll core holder for 76mm cores
• Smaller cores can be placed directly onto the mounting rod
• For rolls with a max. diameter of 170mm and width of 77mm
• Approx. dimensions: Depth 22.5 × Width 9.5 × Height 13 cm / Weight 1.18 kg

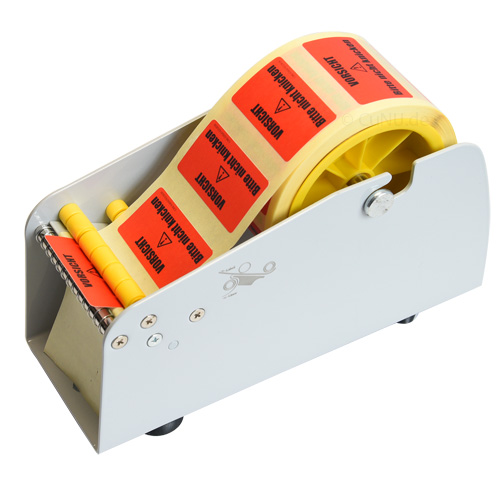

The 77mm label dispenser makes dispensing labels easy. First, insert the roll. Depending on the roll core, you can use the included 76mm holders. Cores with smaller diameters can be placed directly onto the metal rod.

The label backing paper is guided past a roller, over an edge, and redirected. During this process, the label is peeled off the backing paper and pushed over the edge, where it can then be easily grasped. The label dispenser is equipped with suction cups that provide a secure hold on smooth surfaces. Alternatively, the dispenser can be mounted on walls using screws (screws not included).

Old part numbers: 23-LD-316, ALB-0316, CIS-LD; GTIN 4710761988672; EAN codes for this dispenser model: 4042807602328, 4262365039453

Facts about the CUNU label dispenser – a compact model for roll widths up to 77 mm

The smallest CUNU label dispenser is a robust steel unit designed for tabletop or wall mounting. It accommodates label rolls with a maximum width of 77 mm and a roll diameter of up to 170 mm. The scope of delivery includes 76 mm core holders for mounting the label roll.

Thanks to its simple mechanism, the backing paper is guided over an edge, causing the labels to automatically detach from the backing and sit ready for easy access. This ensures quick, clean dispensing without the need for complex technology.

Technical specifications

• Maximum roll width: 77 mm
• Maximum roll diameter: 170 mm
• Core size: 1 × 76 mm (smaller cores can be used directly on the holder rod)
• Housing: Steel, plastic
• Dimensions: D 22.5 × W 9.5 × H 13 cm
• Weight: 1.18 kg
• Mounting: Tabletop mounting with suction cups or wall mounting with screws (not included)
• Operating principle: Separates the label from the backing paper

This compact model is ideal for workspaces with limited room or for settings where individual label rolls are used regularly—such as in warehousing, shipping, production, or retail. Thanks to its compact design and sturdy steel housing, it offers a space-saving, reliable solution for daily label handling. The dispenser facilitates efficient operation without relying on complex technology. There are no limitations caused by rolling mechanisms and no power supply is required—making it ideal for simple processes that prioritize speed and operational reliability.
